Vibration ProductsVertical Vibrators
Vertical Type - 4&6 pole, 220V/380V, Three Phase
Pole Model Output
(kw)		 Full
load
current
(A)
50/60§Ô		 Vibrating force 50/60§Ô
Flange side Counter flange side
Moment
§¸-§¯		 Force
§¸f		 Radius Moment
§¸-§¯		 Force
§¸f		 Radius
4 DVT -408V 0.75 2.0/2.2 42.0/29.0 800 130/116 21.0/14.5 500 104/92
DVT -415V 1.5 5.0/6.0 57.0/40.0 1,100 137/122 27.4/19.0 650 108/96
6 DVT -608V 0.75 2.8/3.0 42.0/29.0 800 130/116 21.0/14.5 500 104/92
DVT -615V 1.5 5.8/6.0 57.0/40.0 1,100 137/122 27.4/19.0 650 108/96

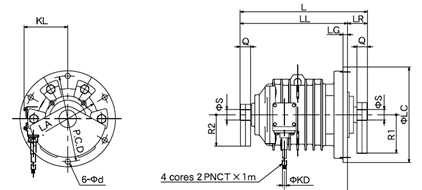

Pole Model Weight
(kg) 		Dimension (mm)
L PCD LA LC LG LL LR KB KD KL Q S D Bolt
Data
4 DVT -408V 52 395 215 172 245 13 329 66 181 11.5 127 39 38 14 M12
DVT -415V 70 406 260 172 295 13 332 74 193 11.5 140 45 42 18 M16
6 DVT -608V 52 395 215 172 245 13 329 66 181 11.5 127 39 38 14 M12
DVT -615V 70 406 260 172 295 13 332 74 193 11.5 140 45 42 18 M16
The data given in this table are subject to change without notice.
